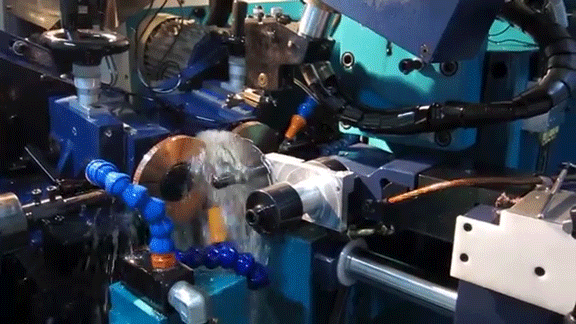

EROSION MACHINE FOR MACHINING THE TOOTH SIDES OF PCD-TIPPED CIRCULAR SAW BLADES

ASG-210EF

EROSION MACHINE FOR MACHINING THE TOOTH SIDES OF PCD-TIPPED CIRCULAR SAW BLADES

As a professional Electrical Discharge Machining Machine manufacturer and supplier in Taiwan, Jeffer Machinery Co., Ltd. consists absorbs knowledge, invents new technology and also enhances equipment to assist product line to achieve a high level of effectiveness of productivity.

Our expertise has enable us to ensure finest Electrical Discharge Machine by subjecting our products to stringent quality control measures during each stage of production and while dispatch. Please feel free to contact us by telephone, e-mail or website’s inquiry form if you have any question.

Related Products

ASG-210EF Feature

  • Automatic electrode trimming and compensate.

  • Full cnc servo controlled with high precision reliability.

  • Servo controlled tooth push mechanism.

  • Super fine erosion circuit up to 02u Ra roughness.

  • Automatic saw blades side tip edge detect function.

  • Automatic electrode diameter detect function.

  • Erosion oscillation mode for better surface finish.

  • Dual extinguisher loop for higher safety consideration.

  • Support both Graphite and Copper electrode.

  • Program editing on screen

Program editing on screen

  • RADIUS SPARK

RADIUS SPARK
RADIUS SPARK

ASG-210EF Specification

Close loop CNC servo controlled axes

  • 2 x for tooth feed (X, Y-axis)

  • 1 x for rotary electrode in feed (Z-axis): outer side

  • 1 x for rotary electrode in feed (C-axis): inner side

  • 1 x for spindle forward loran path (B-axis)



Automatic adjustable axes

  • 1 x for tangential angle adjustment (U-axis)



Manual adjustable axes

  • 1 x for tangential clearance angle adjustment (S-axis)

  • 1 x for tangential clearance angle adjustment (T-axis)

  • 1 x for saw blade positioning slide (R-axis)

  • 1 x for tangential angle adjustment (V-axis)

  • 1 x for tangential angle adjustment (W-axis)

​

Affordable circular saw blades dimension

  • Outer diameter from 180 to 650mm (standard)

  • Bore diameter from 20mm (10 mm option)

  • Blade thickness up to 14mm

  • Cutting width of saw up to 16mm

  • Tooth pitch from 6 to 100mm

  • Erosion path length up to 12mm

  • Hook angle from -15o to +25o

  • Tangential clearance angle up to +6o

  • Radial clearance angle from -10o to +6o

Rotary electrode

  • Outer diameter max. 125mm

  • Outer diameter (worn) min. 100mm

  • Bore diameter 32mm

  • Height 10mm



Rotary electrode spindle

  • Rotational speed 10 ~ 1000 R.P.M.

  • Dielectric pump delivery rate 50 l/min

  • Dielectric tank capacity approx.  100 l

  • Connected load 5.0 KVA



Grinding wheel motor:1/2HPx2

​

Automatic extinguisher-1 set

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. without notice. Please kindly contact us to make sure to get the information up to date.
